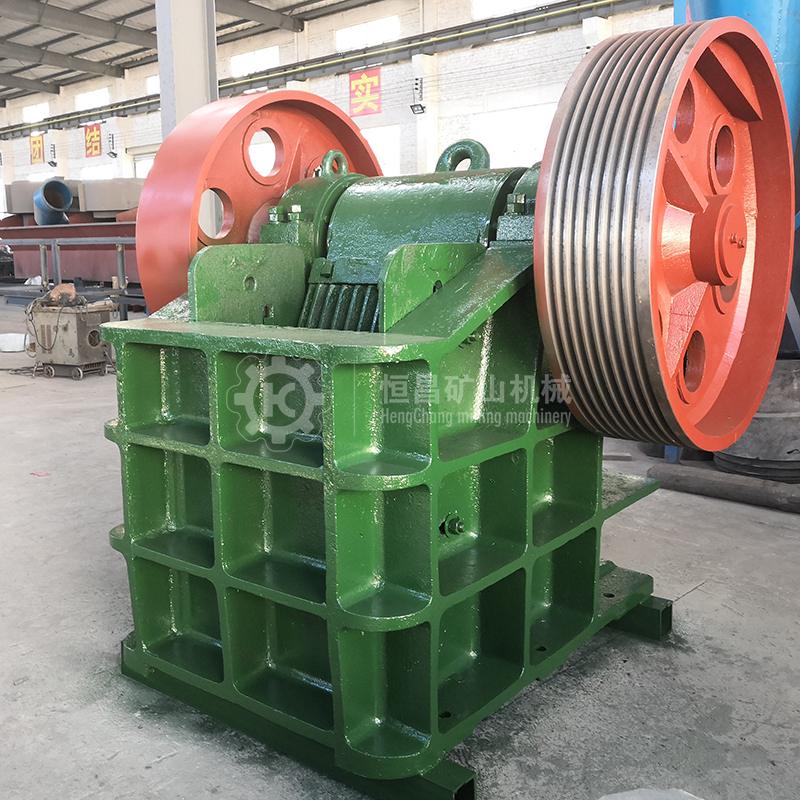

PE、PEX型顎式破碎機 Coarse jaw crusher 國家行業標準JB/T1388 JB/T3279
PE、PEX系列破碎機廣泛運用于礦山、冶煉、建材、公路、鐵路、水利和化學工業等眾多部門，粉碎抗壓強度不超過350兆帕的各種物料。
This crusher is widely used in mining, metallurgical industry, building material, highway, railway, water conservancy and chemical industries. Various materials with compressive resistance less than 350 Mpa can be crushed.
| 型號規格 Model | 進料口尺寸Inlet size | 給料粒度Feed size | 排料口尺寸Output size | 產量 Capacity | 功率Power | 質量Weight |
| mm | mm | mm | m3/h | kw | t | |
| PE1500×250 | 150×250 | 130 | 30-100 | 3 | 7.5 | 1.5 |
| PE250×400 | 250×400 | 210 | 40-100 | 7.5 | 18.5 | 3 |
| PE400×600 | 400×600 | 340 | 40-100 | 34 | 30 | 7 |
| PE500×750 | 500×750 | 425 | 50-100 | 52 | 55 | 15 |
| PE600×900 | 600×900 | 500 | 65-160 | 75 | 55 | 21 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 130 | 110 | 33 |
| PE900×1200 | 900×1200 | 750 | 95-165 | 164 | 110 | 55 |
| PE1200×1500 | 1200×1500 | 1020 | 150-300 | 500 | 160 | 100.9 |
| PEX100×600 | 100×600 | 80 | 15 | 9 | 7.5 | 5 |
| PEX型顎式細碎機 Jaw crusher | ||||||
| PEX150×500 | 150×500 | 120 | 30 | 6 | 13 | 2.5 |
| PEX150×750 | 150×750 | 120 | 18-48 | 16 | 15 | 3.5 |
| PEX200×1000 | 200×1000 | 160 | 20-55 | 23.8 | 22 | 6.5 |
| PEX250×750 | 250×750 | 210 | 25-60 | 22 | 22 | 4.9 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 32 | 30 | 6.5 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 38 | 37 | 7.7 |
| PEX350×750 | 350×750 | 250 | 35-60 | 45 | 37 | 9.21 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 65 | 75 | 11 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
